XVL Processor

Product Overview

XVL Processor is a command-line application that imports and exports metadata to and from 3D XVL files. This enables you to integrate the XVL models with PLM, PDM, ERP, MES and other business systems. XVL Processor also has options to detect geometrical differences, perform interference and clearance checks, and add thickness to surface models.

Key Features and Benefits

Import/Export Metadata

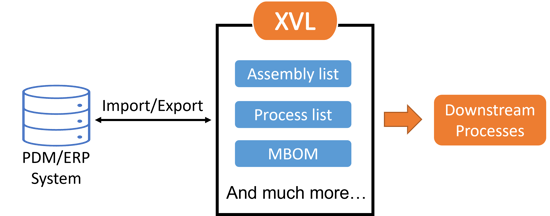

Easily import and export metadata into 3D XVL files, including part information, eBOMs, mBOMs, process trees, and much more. This enables you to integrate the XVL models with PLM, PDM, ERP, MES and other business systems. It produces a  complete 3D model with all related information in a single file that can be utilized in downstream processes.

how it works.png

Product Options

The following options are available for XVL Processor.

XVL Processor Option Description
Difference Detection Option

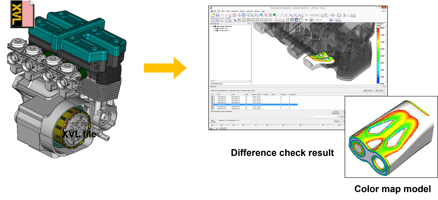

Detects geometrical differences between XVL models and reports the results in 3D.


difference check.png

Interference Check Option

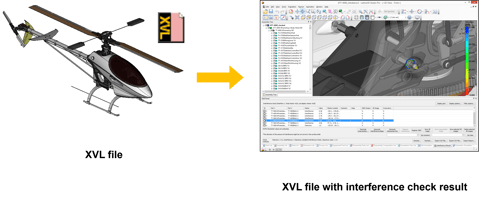

Performs interference and clearance checks on XVL models and reports the results in 3D.

interference check.png

Offset Option

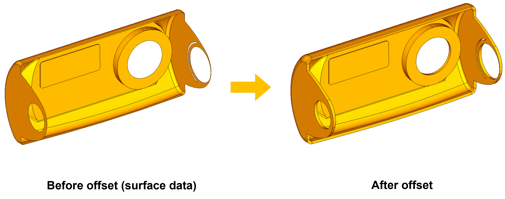

Automatically adds thickness to surface data like sheet metal. The resulting thick surfaces are suitable for interference and clearance checks.
