XVL Studio PointCloud
Product Overview
XVL Studio PointCloud is an advanced grade of XVL Studio that is specifically designed handle point cloud data. It includes all of the features of XVL Studio Pro, and adds the ability to import, edit, manipulate, process, display and interact with large point clouds.
Point cloud data can be difficult to handle due to its large size. Typically, point clouds have no structure so analysis of the data cannot be done efficiently. To get around these issues, often point clouds are converted to surfaces. However, that is a slow and expensive process and the resulting surfaces only approximate the original point cloud data. XVL Studio PointCloud has the ability to handle large and complex point clouds by importing large point cloud data and integrating it with other 3D data without the need to convert to surfaces. The imported point clouds can be decomposed into individual 3D objects that you can manipulate and interact with just like other 3D elements in the model.
Key Features and Benefits
Integrate Point Cloud Data with 3D CAD Data

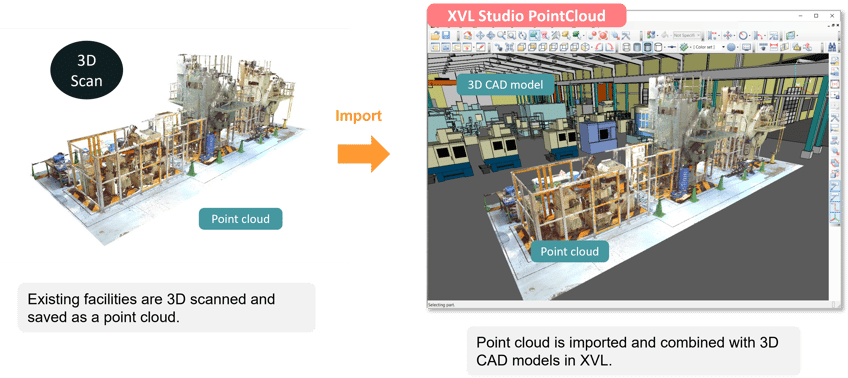

XVL can import large point cloud data and integrate it with 3D CAD data without the need to convert it to surfaces. This way you can efficiently plan facility upgrades by comparing existing layouts in the point cloud format with the new digital 3D model.
Decompose and Regroup Point Clouds

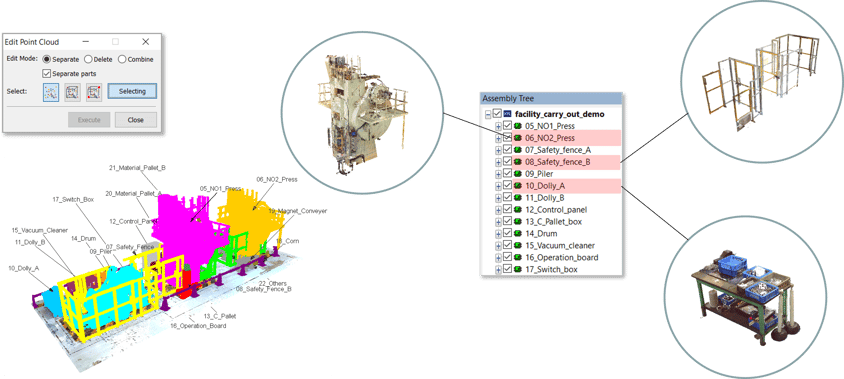

Generally, scanned point clouds can only be used as one large cluster which can be difficult to use effectively. XVL Studio PointCloud includes tools to decompose point clouds into individual 3D objects that are easy to use.
Use Point Clouds as Regular 3D Objects

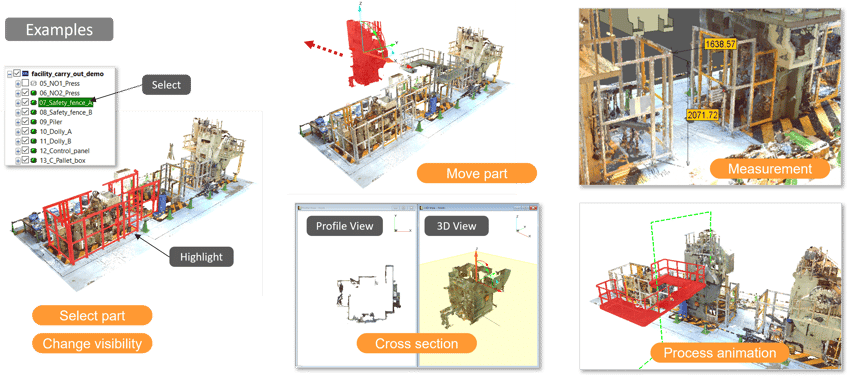

Decomposed point cloud objects are shown as additional components under the assembly tree which can be handled as a standard 3D object, allowing you to move, show/hide, add meta data, and animate as objects. This allows you to enjoy the rich Studio features with the additional elements decomposed from the imported point cloud data.
View Point Cloud Data in Other XVL Tools

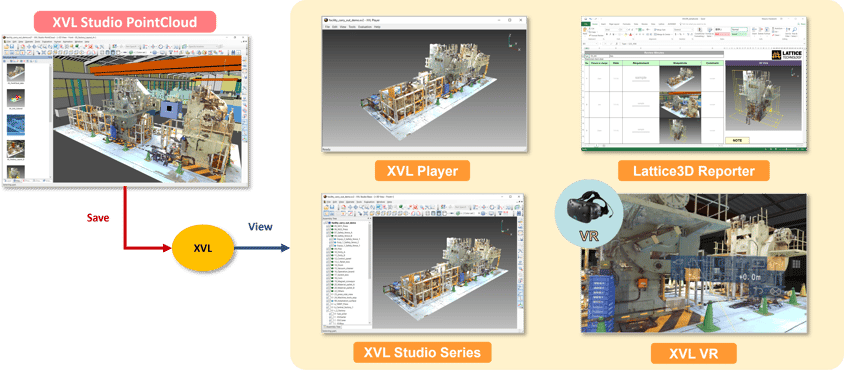

Once point cloud data is saved as XVL, you can view the point cloud data in other XVL tools. This means that you can share the point cloud data as a regular XVL file with others on your team and they can view it through a variety of Lattice Technology software including the free viewers.
Use Cases
Factory Planning with XVL Studio PointCloud

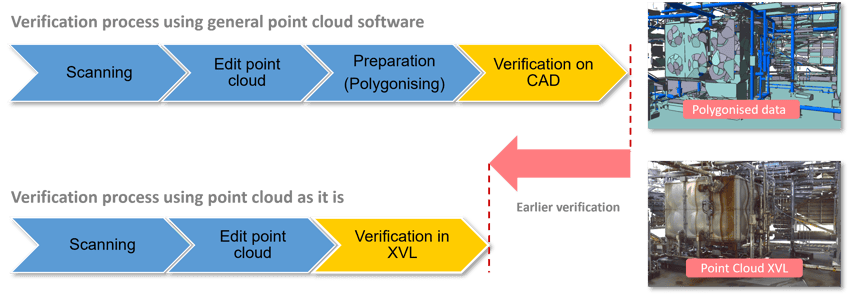

Utilize raw point cloud data instead of converting to surfaces or polygons. Applications include fast virtual verification that new equipment or fixtures will fit in existing facilities with adequate clearance.
Product Configurations
| Key Features | XVL Studio PointCloud |
|---|---|
| View and navigate 3D data | ✓ |
| Change part visibility | ✓ |
| Change 3D display settings | ✓ |
| Edit cameras, snapshots | ✓ |
| Edit materials, textures and lights | ✓ |
| Measure dimensions | ✓ |
| Cut cross-sections | ✓ |
| Edit notes | ✓ |
| Move parts | ✓ |
| Check dynamic collisions | ✓ |
| Display multiple 3D windows | ✓ |
| Snap parts | ✓ |
| Display parts lists | ✓ |
| Edit annotation views and markup | ✓ |
| Edit Manufacturing BOM | ✓ |
| Edit processes | ✓ |
| Edit animations | ✓ |
| Create work instructions | ✓ |
| Automatically detect and apply updates | ✓ |
| Use advanced cross-section tools | ✓ |
| Use tools and equipment | ✓ |
| Validate manufacturing processes | ✓ |
| Detect and analyze static interferences | ✓ |
| Import point cloud data | ✓ |
| Decompose and regroup point clouds | ✓ |
